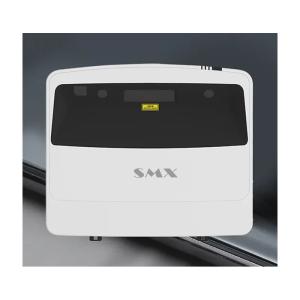

3LCD Laser 5000 Ansi Lumen Projector Home Theater Projetor 4K Ultra Short Throw

Brand Name : SMX

Model Number : MX-WPL503Y

Certification : CE RoHS

Place of Origin : Guangdong, China

MOQ : 1pc

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 15working day

Packaging Details : Pack with carton

Display Technology : 3LCD

Native Resolution : 1920 x 1200

Brightness(Lumen) : 5000

Throw Ratio : 0.235:1

Screen size : 80-120inch

Contrast Ratio : 5000000/1

Aspect Ratio : Native:16:10 Compatible: 4:3/16:9

Filter Life time : 8000 h

Speaker : 16W*1

Cooling time : 0s, Normal,TBD

Dust filter : W/Filter

MAX Dimensions (WxHxD mm) : 520(W)×435(D)×168(H)

Net. Weight (KG) : 11kg

Warranty : 1 year

Contact Now

3LCD Laser 5000 Ansi Lumen Projector 4K Ultra Short Throw Projector For Home Theater

3LCD Laser 5000 Ansi Lumen Projector Home Theater Projetor 4K Ultra Short Throw

About this item
  * Ultra bright — 5000 lumens of color/white brightness
  * Large, easy-to-read images — 4:3 XGA resolution for true to life images up to up to 150" diagonal
  * Laser light source life — virtually maintenance-free 80,000-hour laser light source with no lamps to replace
  * Large display size — provides up to 2.5 times larger images than 75" flat panels
  * Time-saving operation — display in seconds with Instant On laser light source
  * Convenient short-throw design — greatly reduces shadowing

Color reproduction----3LCD projection technology restore the truth

3LCD projection technology delivers brighter colors. The colors of the picture are more realistic and gorgeous,

And there will be no rainbow effect. Color brightness is equivalent to 100% white brightness.

3LCD Laser 5000 Ansi Lumen Projector Home Theater Projetor 4K Ultra Short Throw

Cinema quality,Insight into detailsWUXGA Resolution---Large screen over 150 inches
The physical resolution is up to 1920*1200,
Can provide clearer pictures,Present more picture details.
And supports 4K resolution input.
Horizontal & vertical trapezoidal correction functionAs well as hexagonal correction, Pillow/barrel distortion correction,and multi-point trapezoidal correction function. EAsy to adjust
  	  			Model
  			MX-WPL503Y

  			Brightness
  			Lumen
  			5000

  			Overall Spec

  			Panel
  			Display Panel
  			3x0.64” with MLA

  			Display Technology
  			Liquid Crystal Display

  			Native Resolution
  			WUXGA (1920 x 1200)

  			Light source
  			Life time
  			Normal mode
  			20000hrs

  			ECO1 mode
  			30000hrs

  			ECO2 mode
  			30000hrs

  			Projection
  			Lens
  			Lens Vendor
  			RICOH

  			F
  			F1.7

  			f
  			2.84mm

  			Zoom/Focus
  			Manual

  			Throw Ratio
  			0.235:1

  			Zoom Ratio
  			N/A

  			Screen size
  			80-120nch

  			Lens Shift
  			N/A

  			CR
  			Contrast Ratio
  			(FOFO)
  			5000000:1

  			Noise
  			Noise(dB)

  			37dB (Normal)
  			30dB(ECO1)
  			27dB(ECO2)

  			Uniformity
  			Uniformity(Actual Min)
  			-JISX6911
  			80%

  			AR
  			Aspect Ratio
  			Native:16:10
  			Compatible: 4:3/16:9

  			Terminal(I/O port)

  			Input
  			VGA
  			*1

  			HDMI 1.4B(IN)
  			*2

  			USB-A
  			*1

  			USB-B
  			*1(Display)

  			RJ45
  			*1 (Display)

  			DVI-D
  			N/A

  			HD BaseT
  			N/A

  			HD-SDI(3G-SDI)
  			N/A

  			Video
  			N/A

  			Audio in
  			(mini jack,3.5mm)
  			*1

  			Output
  			VGA
  			*1

  			HDMI 1.4B(OUT)
  			N/A

  			Audio out
  			(mini-jack,3.5mm)
  			*1

  			Control
  			RS232
  			*1

  			RJ45
  			*1 (Control)

  			USB-B
  			*1 (For upgrade)

  			Wired Remote(IN)
  			N/A

  			Wired Remote(OUT)
  			N/A

  			General Spec

  			Audio
  			Speaker
  			16W*1

  			Dust filter
  			W/Filter

  			Filter Life time
  			8000h

  			Power
  			Consumption
  			Power Requeirements
  			100~240V@ 50/60Hz

  			Power Consumption
  			(Normal) (Max)
  			380

  			Power Consumption
  			(ECO1) (Max)
  			280

  			Power Consumption
  			(ECO2) (Max)
  			230

  			ECO Standby Mode
  			Power Consumption
  			<0.5W

  			Temp.&Humidity
  			Operating Temp.
  			5 to 40°C

  			Operating Thumidity.
  			20-80%

  			Store Temp.
  			-10 to 50°C

  			High altitude
  			0~3000m



1. 100% on time delivery.2. Support different transportation, such as by sea, by air, by railway or others.
  3. One-stop transport service to make you convenient and save your time.
  4. Supply free sea insurance to ensure safe to arrive the port.

Product Tags:

5000 Ansi Lumen 3LCD Laser Projector

Ultra Short Throw Home Theater Projetor

Home Theater 3LCD Laser Projector

3LCD Laser 5000 Ansi Lumen Projector Home Theater Projetor 4K Ultra Short Throw Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen SMX Display Technology Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Model	MX-WPL503Y
Brightness	Lumen	5000
Overall Spec
Panel	Display Panel	3x0.64” with MLA
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Normal mode	20000hrs
	ECO1 mode	30000hrs
	ECO2 mode	30000hrs
Projection Lens	Lens Vendor	RICOH
	F	F1.7
	f	2.84mm
	Zoom/Focus	Manual
	Throw Ratio	0.235:1
	Zoom Ratio	N/A
	Screen size	80-120nch
	Lens Shift	N/A
CR	Contrast Ratio (FOFO)	5000000:1
Noise	Noise(dB)	37dB (Normal) 30dB(ECO1) 27dB(ECO2)
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4B(IN)	*2
	USB-A	*1
	USB-B	*1(Display)
	RJ45	*1 (Display)
	DVI-D	N/A
	HD BaseT	N/A
	HD-SDI(3G-SDI)	N/A
	Video	N/A
	Audio in (mini jack,3.5mm)	*1
Output	VGA	*1
	HDMI 1.4B(OUT)	N/A
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
	Wired Remote(IN)	N/A
	Wired Remote(OUT)	N/A
General Spec
Audio	Speaker	16W*1
Dust filter		W/Filter
Filter Life time		8000h
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power Consumption (Normal) (Max)	380
	Power Consumption (ECO1) (Max)	280
	Power Consumption (ECO2) (Max)	230
	ECO Standby Mode Power Consumption	<0.5W
Temp.&Humidity	Operating Temp.	5 to 40°C
	Operating Thumidity.	20-80%
	Store Temp.	-10 to 50°C
	High altitude	0~3000m
